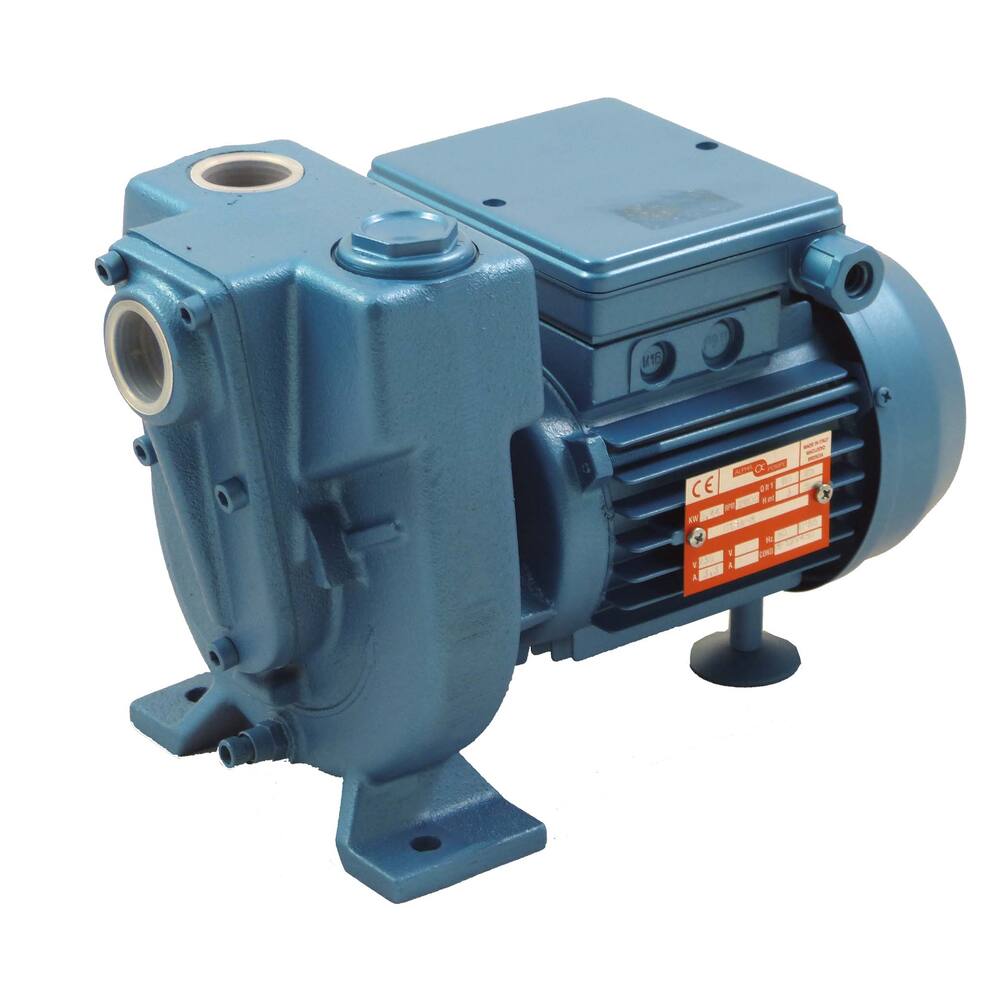

ALPHA 01RA-M 0.6 HP 230V
ALPHA 01RA-M 0.6 HP 230V
Multiple variants available
Select the desired variant below or click on the button to view & order all variants.
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
Deck wash and bilge pumps for commercial shipping, large pleasure craft and coastal shipping. Can also be used for sprinkling, irrigation and dewatering, and as a cooling medium pump in industry.
Type: 01RA-M
Colour: blue
Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
Impeller type: open impeller
Motor type: induction motor for 230 volt
Fuse: inbuilt thermal safeguard only for the 230 volt motors
Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
Material impeller: cast iron
Material pump housing: cast iron
Material pump shaft: stainless steel AISI 420
Liquids: contaminated water, sea water etc. maximum temperature 90°C
Insulation class: IP55
9 metres head: 1,500 litres per hour
Connections: 1" internal thread
Dimensions: lxwxh = 304 x 162 x 213 mm
Weight: 11 kg
Amperage: 230 V: 3.3 A
Shaft power: 0.44 kW, 0.6 hp, 2800 rpm
ATEX: II 2 G EEx d IIHB T5, T4, T3
ATEX: Pump for cargo residues, for example petrol. Comes with explosion proof and compression resistant motor as well as a mechanical seal with Viton.
Type: 01RA-M
Colour: blue
Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
Impeller type: open impeller
Motor type: induction motor for 230 volt
Fuse: inbuilt thermal safeguard only for the 230 volt motors
Shaft seal: ceramic on carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
Material impeller: cast iron
Material pump housing: cast iron
Material pump shaft: stainless steel AISI 420
Liquids: contaminated water, sea water etc. maximum temperature 90°C
Insulation class: IP55
9 metres head: 1,500 litres per hour
Connections: 1" internal thread
Dimensions: lxwxh = 304 x 162 x 213 mm
Weight: 11 kg
Amperage: 230 V: 3.3 A
Shaft power: 0.44 kW, 0.6 hp, 2800 rpm
ATEX: II 2 G EEx d IIHB T5, T4, T3
ATEX: Pump for cargo residues, for example petrol. Comes with explosion proof and compression resistant motor as well as a mechanical seal with Viton.
- 92.11.010 - ALPHA 01RA-M 0,6 PK 230V - Dimensions
- 92.11.010 - ALPHA 01RA-M 0,6 PK 230V - Exploded view
- 92.11.010 - ALPHA 01RA-M 0,6 PK 230V - Pump curve
- 92.11.010 - ALPHA 01RA-M 0,6 PK 230V - Datasheet
| Product code | 92.11.010 |
| Suction head | 2.0 m |
| Pipe diameter pressure | 1" |
| Pipe diameter suction | 1" |
| Pump type | Dry set-up pump: self-priming |
| Medium | Water |
| Particle size | 8 mm |
| Discharge head Max. | 9.5 m |
| Voltage | 230 V |
| Current | AC |
| Frequency | 50 Hz |
| Fuel | - |
| Protection class | IP68 |
| ATEX | No |
| Separate float switch | - |
| Free flow (L/Hour) | 4920 |
| Capacity 5 meter (L/hour) | 4020 |
