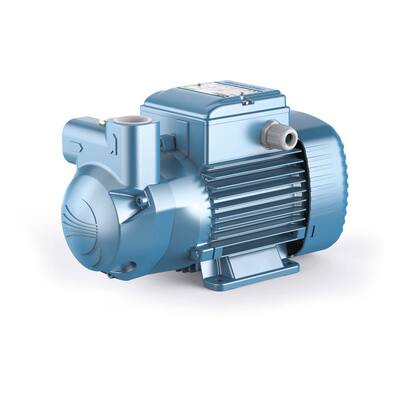

CITY GAS OIL PUMP SELF-PRIMING IL 50 400V
CITY GAS OIL PUMP SELF-PRIMING IL 50 400V
Multiple variants available
Select the desired variant below or click on the button to view & order all variants.
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
Cast iron pump for transporting clean water and thin clean oil products such as gas oil, petrol etc.
Used in shipping as a fuel trim pump.
Type: IL
Colour: blue
Pump type: liquid ring pump, NOT a centrifugal pump
Impeller type: turbine impeller, star impeller
Motor type: induction motor
Fuse: inbuilt thermal safeguard for 230 volt
Shaft seal: ceramic on carbon mechanical seal + viton
Material impeller: brass
Material impeller housing: brass
Material pump housing: cast iron
Material pump shaft: stainless steel
Liquids: water, gas oil and other clean liquids without abrasive particles
10 metres head: 2,000 litres per hour
15 metres head: 1,590 litres per hour
20 metres head: 1,200 litres per hour
25 metres head: 780 litres per hour
30 metres head: 360 litres per hour
Particle size: zero
Dimensions: LxWxH = approx. 260 x 120 x 159 mm
Weight: 7.3 kg
Amperage 400 V, 1.2 A
Shaft power: 0.375 kW, 0.5 hp, 2800 rpm
Cable: none
Used in shipping as a fuel trim pump.
Type: IL
Colour: blue
Pump type: liquid ring pump, NOT a centrifugal pump
Impeller type: turbine impeller, star impeller
Motor type: induction motor
Fuse: inbuilt thermal safeguard for 230 volt
Shaft seal: ceramic on carbon mechanical seal + viton
Material impeller: brass
Material impeller housing: brass
Material pump housing: cast iron
Material pump shaft: stainless steel
Liquids: water, gas oil and other clean liquids without abrasive particles
10 metres head: 2,000 litres per hour
15 metres head: 1,590 litres per hour
20 metres head: 1,200 litres per hour
25 metres head: 780 litres per hour
30 metres head: 360 litres per hour
Particle size: zero
Dimensions: LxWxH = approx. 260 x 120 x 159 mm
Weight: 7.3 kg
Amperage 400 V, 1.2 A
Shaft power: 0.375 kW, 0.5 hp, 2800 rpm
Cable: none
| Product code | 93.25.073 |
| Suction head | 4.0 m |
| Pipe diameter pressure | 3/4" |
| Pipe diameter suction | 3/4" |
| Pump type | Dry set-up pump: self-priming |
| Medium | Gasoil |
| Particle size | 2 mm |
| Discharge head Max. | 31.5 m |
| Voltage | 400 V |
| Current | AC |
| Frequency | 50 Hz |
| Fuel | - |
| Protection class | IP68 |
| ATEX | No |
| Separate float switch | - |
| Free flow (L/Hour) | 2400 |
| Capacity 5 meter (L/hour) | 2400 |
