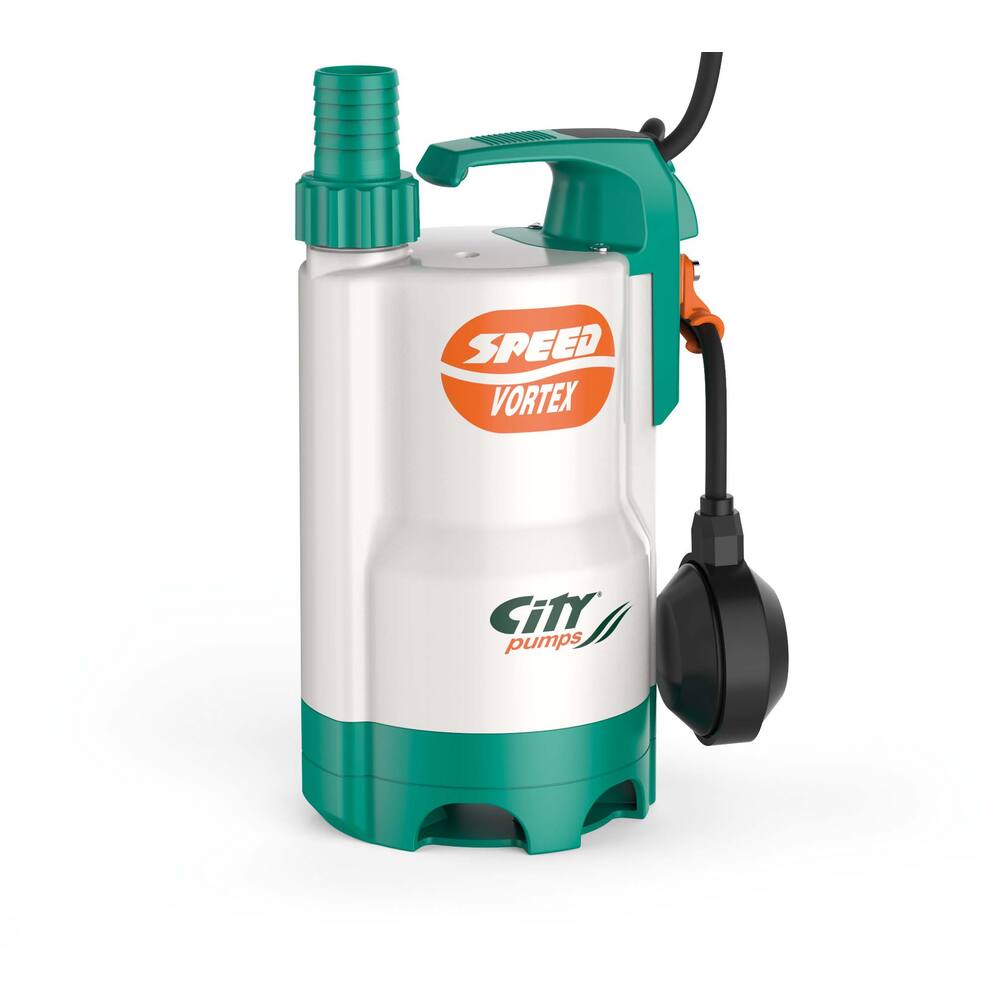

CITY SPEED VORTEX 50M+ BALL FLOAT
CITY SPEED VORTEX 50M+ BALL FLOAT
Multiple variants available
Select the desired variant below or click on the button to view & order all variants.
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
Small affordable submersible pump for many applications.
For inland shipping, roofers, tennis courts, ponds, cellars etc.
Can cope with contaminants up to a maximum diameter of 20 mm if they are not too hard.
Type: Speed
Colour: white with green
Pump type: completely submersible centrifugal pump
Impeller type: recessed open impeller (vortex)
Motor type: dry motor
Fuse: inbuilt thermal safeguard
Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
Submersion depth: 3 metres
Material impeller: Noryl
Material impeller housing: plastic
Material motor housing: plastic
Material pump shaft: stainless steel EN 10088-3, 1.4104
Liquids: clean and slightly contaminated water, maximum temperature +40°C (+90°C for a maximum of 3 minutes)
Pumps down to: 25 mm
Particle size: 25 mm, no sand or gravel
Connections: 1.1/4" hose connection and 1.1/4" external thread
Dimensions: diameter 152 mm, height 290 mm
Weight: 6.8 kg
Amperage: 2.0 A
Shaft power: 0.37 kW, 0.5 hp, 2900 rpm
Cable: 10 metre neoprene H05-RN-F with earthed plug
For inland shipping, roofers, tennis courts, ponds, cellars etc.
Can cope with contaminants up to a maximum diameter of 20 mm if they are not too hard.
Type: Speed
Colour: white with green
Pump type: completely submersible centrifugal pump
Impeller type: recessed open impeller (vortex)
Motor type: dry motor
Fuse: inbuilt thermal safeguard
Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
Submersion depth: 3 metres
Material impeller: Noryl
Material impeller housing: plastic
Material motor housing: plastic
Material pump shaft: stainless steel EN 10088-3, 1.4104
Liquids: clean and slightly contaminated water, maximum temperature +40°C (+90°C for a maximum of 3 minutes)
Pumps down to: 25 mm
Particle size: 25 mm, no sand or gravel
Connections: 1.1/4" hose connection and 1.1/4" external thread
Dimensions: diameter 152 mm, height 290 mm
Weight: 6.8 kg
Amperage: 2.0 A
Shaft power: 0.37 kW, 0.5 hp, 2900 rpm
Cable: 10 metre neoprene H05-RN-F with earthed plug
- 91.29.651 - CITY SPEED VORTEX 50M+ BAL VLOTTER - Pump curve
| Product code | 91.29.651 |
| Pipe diameter pressure | 1.1/4" |
| Pipe diameter suction | - |
| Pump type | Submersible pump |
| Medium | Water |
| Medium | Water with coarse components |
| Particle size | 25 mm |
| Discharge head Max. | 7.0 m |
| Voltage | 230 V |
| Current | AC |
| Frequency | 50 Hz |
| Protection class | IP68 |
| ATEX | No |
| Separate float switch | Yes |
| Free flow (L/Hour) | 10800 |
| Capacity 5 meter (L/hour) | 4500 |
