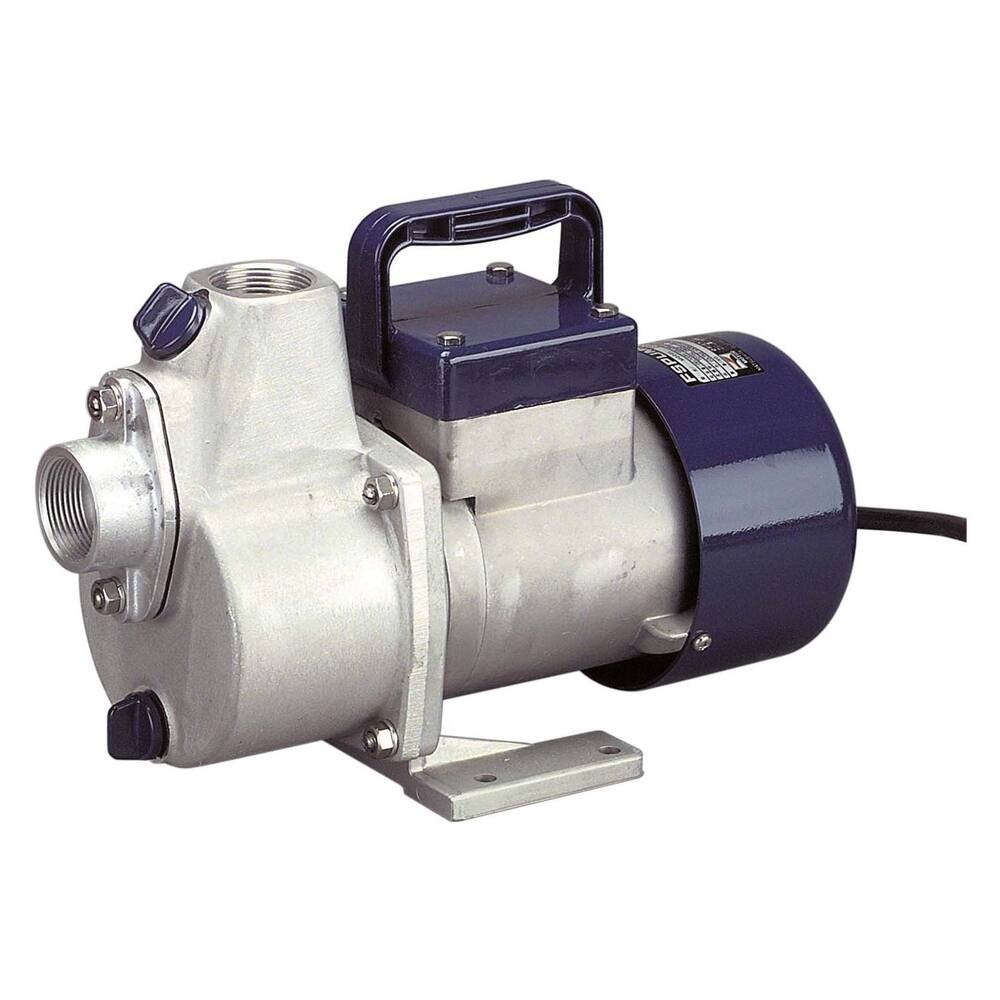

KOSHIN FS-3224S 24V
KOSHIN FS-3224S 24V
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
Professional self-priming pump for commercial shipping, large pleasure craft, construction, transport, mobile cranes etc.
Type: FS
Colour: blue with aluminium
Pump type: self-priming centrifugal pump
Impeller type: open impeller
Motor type: completely closed brush motor with fan cooling
Fuse: NOT inbuilt
Shaft seal: ceramic on carbon mechanical seal
Material impeller: sea water resistant aluminium
Material impeller housing: sea water resistant aluminium
Material pump housing: sea water resistant aluminium
Material pump shaft: stainless steel
Liquids: clean and slightly contaminated gas oil, petrol, spindle oil, water and sea water (no sea water for FS-12D)
Voltage: 24 V DC
10 metres head: 3,900 litres per hour
15 metres head: 1,500 litres per hour
Connections: 1.1/4" hose connection and 1.1/4" internal thread
Dimensions: lxwxh = 283 x 122 x 154 mm
Weight: 8.0 kg
Amperage: 16 A
Shaft power: 0.2 kW, 0.26 hp, 6200 rpm
Type: FS
Colour: blue with aluminium
Pump type: self-priming centrifugal pump
Impeller type: open impeller
Motor type: completely closed brush motor with fan cooling
Fuse: NOT inbuilt
Shaft seal: ceramic on carbon mechanical seal
Material impeller: sea water resistant aluminium
Material impeller housing: sea water resistant aluminium
Material pump housing: sea water resistant aluminium
Material pump shaft: stainless steel
Liquids: clean and slightly contaminated gas oil, petrol, spindle oil, water and sea water (no sea water for FS-12D)
Voltage: 24 V DC
10 metres head: 3,900 litres per hour
15 metres head: 1,500 litres per hour
Connections: 1.1/4" hose connection and 1.1/4" internal thread
Dimensions: lxwxh = 283 x 122 x 154 mm
Weight: 8.0 kg
Amperage: 16 A
Shaft power: 0.2 kW, 0.26 hp, 6200 rpm
- 93.10.324 - KOSHIN FS-3224S 24V - Pump curve
- 93.10.324 - KOSHIN FS-3224S 24V - Datasheet
- 93.10.324 - KOSHIN FS-3224S 24V - Exploded view
- 93.10.324 - KOSHIN FS-3224S 24V - Dimensions
| Product code | 93.10.324 |
| Suction head | 5.0 m |
| Pipe diameter pressure | 1.1/4" |
| Pipe diameter suction | 1.1/4" |
| Pump type | Dry set-up pump: self-priming |
| Medium | Water |
| Medium | Sea water |
| Medium | Gasoil |
| Particle size | 2 mm |
| Discharge head Max. | 18.5 m |
| Voltage | 24 V |
| Current | DC |
| Frequency | - |
| Fuel | - |
| Protection class | IP68 |
| ATEX | No |
| Separate float switch | - |
| Free flow (L/Hour) | 6000 |
| Capacity 5 meter (L/hour) | 4800 |
