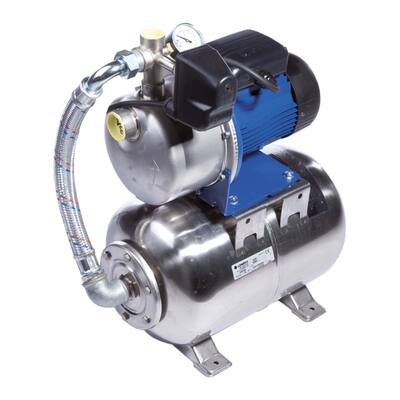

LOWARA PRESSURIZED WATER SYSTEM BGM-5 20L 230V
LOWARA PRESSURIZED WATER SYSTEM BGM-5 20L 230V
Multiple variants available
Select the desired variant below or click on the button to view & order all variants.
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
Pressurization system for homes or where mains voltage is present.
Comes with a steel or stainless steel butyl membrane pressure vessel, manometer, non-return valve, pressure switch and electric pump.
Type: BGM-5
Colour: white or stainless steel
Pump type: self-priming centrifugal pump
Impeller type: closed
Motor type: brushless motor
Shaft seal: ceramic on carbon mechanical seal
Material impeller: stainless steel 304
Material pump housing: stainless steel 304
Material pump shaft: stainless steel 304
Material vessel: steel
Material other: brass
Liquids: clean water
Capacity: 1,560 litres per hour at 3.0 bar
Suction height: 8.0 metres when using foot valve
Type pressure vessel: horizontal 20 l steel or stainless steel butyl membrane vessel with approx. 8 litres useful water capacity
Switch on pressure: 1.5 bar
Switch off pressure: 3.5 bar
Dimensions: lxwxh = 660 x 290 x 610 mm
Weight: 21.0 kg
Amperage: 4.3 A
Shaft power: 0.55 kW, 0.75 hp, 2800 rpm
Comes with a steel or stainless steel butyl membrane pressure vessel, manometer, non-return valve, pressure switch and electric pump.
Type: BGM-5
Colour: white or stainless steel
Pump type: self-priming centrifugal pump
Impeller type: closed
Motor type: brushless motor
Shaft seal: ceramic on carbon mechanical seal
Material impeller: stainless steel 304
Material pump housing: stainless steel 304
Material pump shaft: stainless steel 304
Material vessel: steel
Material other: brass
Liquids: clean water
Capacity: 1,560 litres per hour at 3.0 bar
Suction height: 8.0 metres when using foot valve
Type pressure vessel: horizontal 20 l steel or stainless steel butyl membrane vessel with approx. 8 litres useful water capacity
Switch on pressure: 1.5 bar
Switch off pressure: 3.5 bar
Dimensions: lxwxh = 660 x 290 x 610 mm
Weight: 21.0 kg
Amperage: 4.3 A
Shaft power: 0.55 kW, 0.75 hp, 2800 rpm
- 97.37.010 - HYDROFOOR LOWARA BGM-5 20L 230V - Datasheet
- 97.37.010 - HYDROFOOR LOWARA BGM-5 20L 230V - Manual
| Product code | 97.37.010 |
| Number of tapping points | Geyser and 2 tapping points |
| Suction head | 8.0 m |
| Pipe diameter pressure | 1" |
| Pipe diameter suction | 1.1/4" |
| Model | 20 Litre steel container |
| Pump type | Pressurrized water |
| Medium | Water |
| Particle size | 2 mm |
| Discharge head Max. | 35.0 m |
| Voltage | 230 V |
| Current | AC |
| Frequency | 50 Hz |
| Fuel | - |
| Protection class | IP68 |
| ATEX | No |
| Separate float switch | - |
| Free flow (L/Hour) | 1560 |
| Capacity 5 meter (L/hour) | 1560 |
