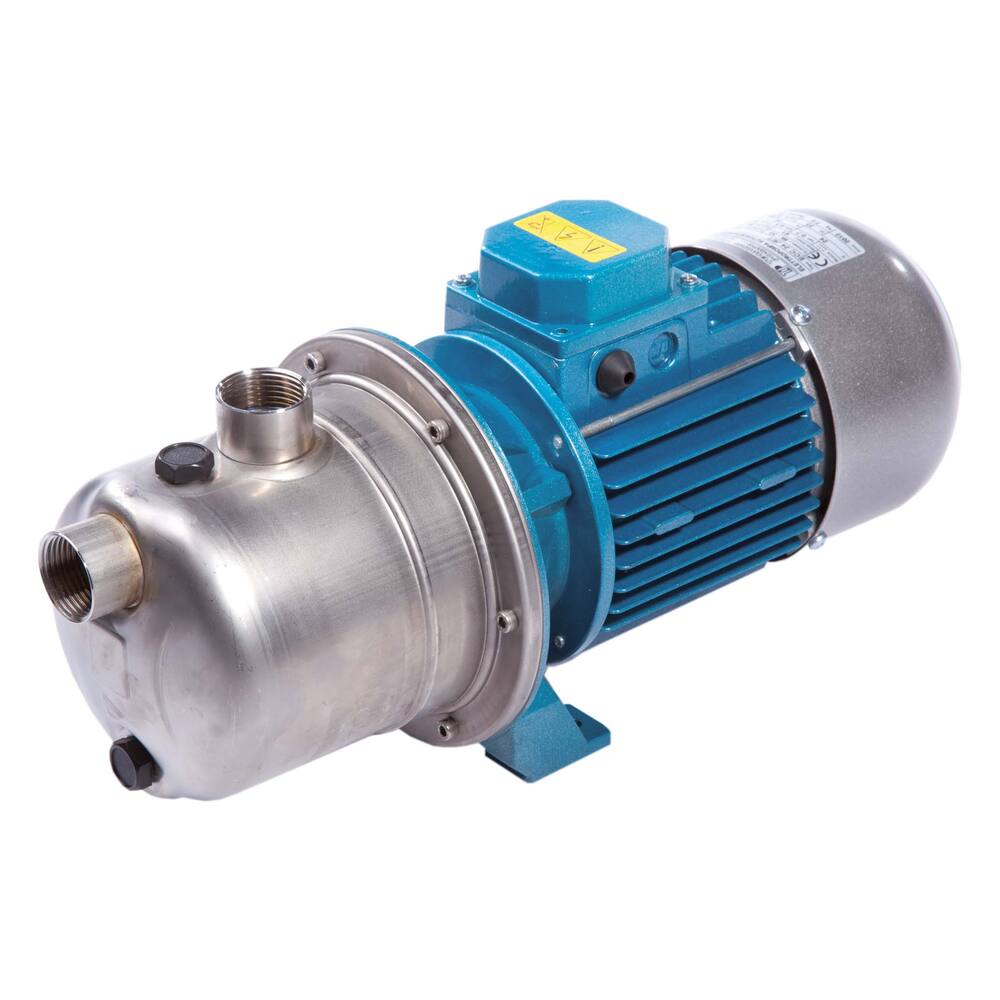

TELLARINI JET PUMP-24DC 24V
TELLARINI JET PUMP-24DC 24V
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
All stainless steel pump for sanitary drinking water systems on board ships and yachts (also available as complete pressurized water system).
Colour: blue and stainless steel
Pump type: self-priming centrifugal pump with jet system
Impeller type: closed impeller
Motor type: brush motor
Fuse: NOT inbuilt
Shaft seal: mechanical seal ceramic / carbon / NBR
Material impeller: Noryl
Material impeller chamber: Noryl
Material pump housing: stainless steel 304
Material pump shaft: stainless steel 304
Liquids: clean water
10 metres head: 3,360 litres per hour
15 metres head: 2,520 litres per hour
20 metres head: 1,800 litres per hour
25 metres head: 1,800litres per hour
30 metres head: 60 litres per hour
Connections: 1" internal thread
Dimensions: lxwxh = 409 x 170 x 190 mm
Weight: 7.9 kg
Amperage: 19 A
Shaft power: 0.525 kW, 0.7 hp, 2700 rpm
Used on Jet pump pressurized water system (97.27.010).
Colour: blue and stainless steel
Pump type: self-priming centrifugal pump with jet system
Impeller type: closed impeller
Motor type: brush motor
Fuse: NOT inbuilt
Shaft seal: mechanical seal ceramic / carbon / NBR
Material impeller: Noryl
Material impeller chamber: Noryl
Material pump housing: stainless steel 304
Material pump shaft: stainless steel 304
Liquids: clean water
10 metres head: 3,360 litres per hour
15 metres head: 2,520 litres per hour
20 metres head: 1,800 litres per hour
25 metres head: 1,800litres per hour
30 metres head: 60 litres per hour
Connections: 1" internal thread
Dimensions: lxwxh = 409 x 170 x 190 mm
Weight: 7.9 kg
Amperage: 19 A
Shaft power: 0.525 kW, 0.7 hp, 2700 rpm
Used on Jet pump pressurized water system (97.27.010).
- 93.28.060 - TELLARINI JETPOMP-24DC 24V - Dimensions
- 93.28.060 - TELLARINI JETPOMP-24DC 24V - Pump curve
| Product code | 93.28.060 |
| Suction head | 8.0 m |
| Pipe diameter pressure | 1" |
| Pipe diameter suction | 1" |
| Pump type | Dry set-up pump: self-priming |
| Medium | Water |
| Particle size | 2 mm |
| Discharge head Max. | 36.0 m |
| Voltage | 24 V |
| Current | DC |
| Frequency | - |
| Fuel | - |
| Protection class | IP68 |
| ATEX | No |
| Separate float switch | - |
| Free flow (L/Hour) | 3700 |
| Capacity 5 meter (L/hour) | 3600 |
