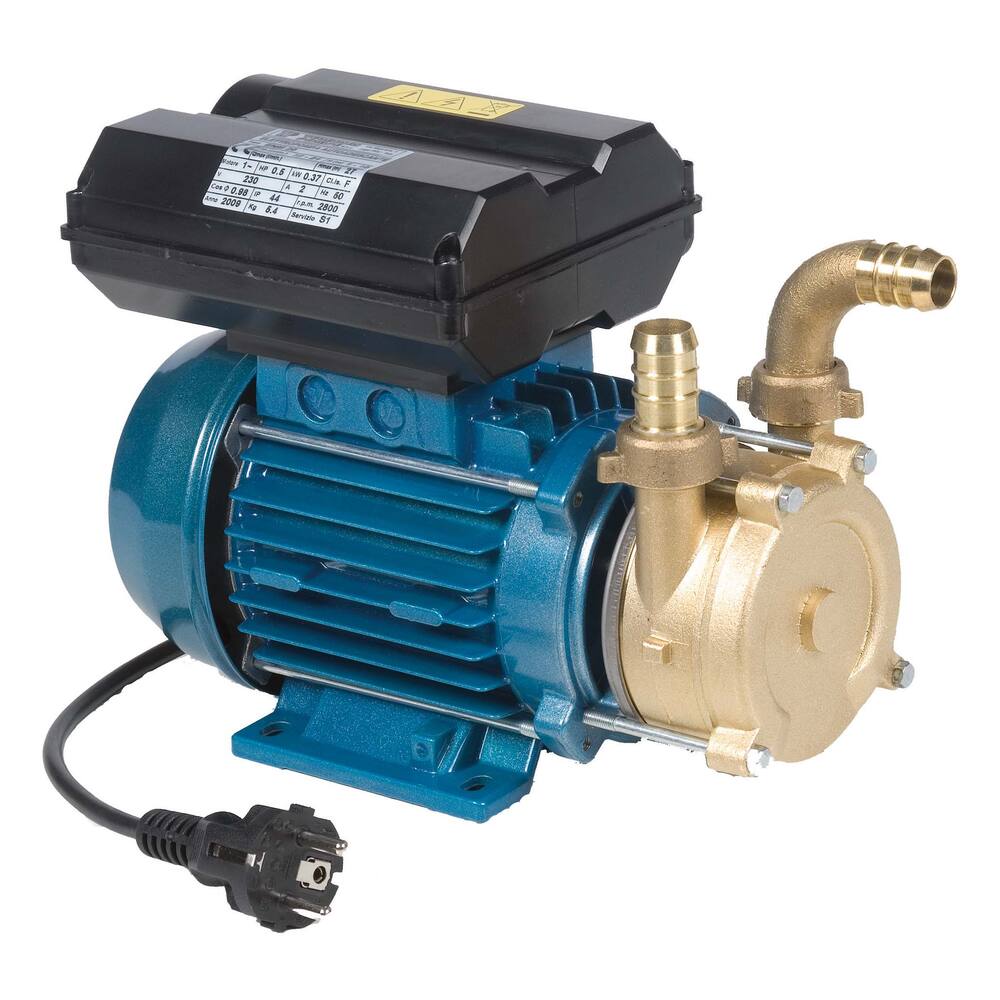

TELLARINI ENM 50 BRASS 230V
TELLARINI ENM 50 BRASS 230V
Do you want to order our products?
Description
If you are interested in our products, you can apply for an account with us. However, we do impose a few conditions for our customers. End users/shipping companies in the Inland Shipping sector and private individuals can only order our products through our dealer network. For more information about our dealer network, you can always contact us. ContactProduct Description
Robust self-priming side channel pump for clean liquids, gas oil, water, wine, fruit juice etc.
Type: ENM
Colour: blue with brass
Pump type: self-priming liquid ring pump, not a centrifugal pump and may therefore NEVER be completely sealed off
Impeller type: open star impeller
Motor type 230 volt: induction motor with reversing switch
Fuse: NOT inbuilt
Shaft seal: nitrile rubber lip seal with stainless steel spring, mechanical seal available and it can be fitted afterwards
Material impeller: brass
Material impeller housing: brass
Material pump housing: brass
Material pump shaft: stainless steel 316
Liquids: maximum temperature 90°C continuous water, gas oil and other clean liquids without abrasive particles
10 metres head: 10,200 litres per hour
15 metres head: 7,620 litres per hour
20 metres head: 4,380 litres per hour
Connections: 2" external thread and 2" hose connection
Dimensions: lxwxh = 412 x 208 x 246 mm
Weight: 22.8 kg
Amperage: 11.8 A
Shaft power: 1.5 kW, 2.0 hp, 1400 rpm
Type: ENM
Colour: blue with brass
Pump type: self-priming liquid ring pump, not a centrifugal pump and may therefore NEVER be completely sealed off
Impeller type: open star impeller
Motor type 230 volt: induction motor with reversing switch
Fuse: NOT inbuilt
Shaft seal: nitrile rubber lip seal with stainless steel spring, mechanical seal available and it can be fitted afterwards
Material impeller: brass
Material impeller housing: brass
Material pump housing: brass
Material pump shaft: stainless steel 316
Liquids: maximum temperature 90°C continuous water, gas oil and other clean liquids without abrasive particles
10 metres head: 10,200 litres per hour
15 metres head: 7,620 litres per hour
20 metres head: 4,380 litres per hour
Connections: 2" external thread and 2" hose connection
Dimensions: lxwxh = 412 x 208 x 246 mm
Weight: 22.8 kg
Amperage: 11.8 A
Shaft power: 1.5 kW, 2.0 hp, 1400 rpm
- 93.20.505 - TELLARINI ENM 50 MESSING 230V - Datasheet
- 93.20.505 - TELLARINI ENM 50 MESSING 230V - Dimensions
- 93.20.505 - TELLARINI ENM 50 MESSING 230V - Pump curve
| Product code | 93.20.505 |
| Suction head | 6.0 m |
| Pipe diameter pressure | 2" |
| Pipe diameter suction | 2" |
| Pump type | Dry set-up pump: self-priming |
| Medium | Water |
| Medium | Sea water |
| Medium | Gasoil |
| Particle size | 2 mm |
| Discharge head Max. | 24.0 m |
| Voltage | 230 V |
| Current | AC |
| Frequency | 50 Hz |
| Fuel | - |
| Protection class | IP55 |
| ATEX | No |
| Separate float switch | - |
| Free flow (L/Hour) | 14400 |
| Capacity 5 meter (L/hour) | 12600 |
